TELESCOPIC HYDRAULIC CYLINDERS
3000 PSI SINGLE ACTING CYLINDERS
7 Tons and 12 Tons
In Inches
PART NUMBER
CAPACITY
STROKE

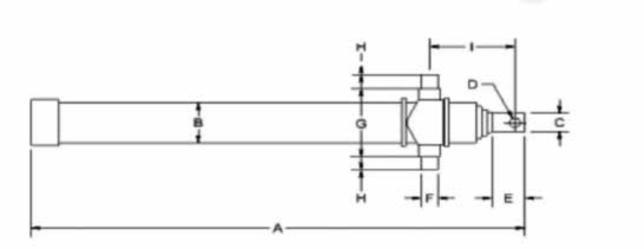

CLOSED (A)
B
C
D
E
F
G
H
I
PORT
Wt LBS.
HTC-3378
7TONS
78”
35.5”
4
2
1.0625
2.25
1.25
6.5
1.25
7
1/2” NPT
108 LBS
HTC-3390
7TONS
90”
39.5”
4
2
1.0625
2.5
1.25
6.5
1.25
7
1/2” NPT
100 LBS
HTC-33108
7TONS
108”
45”
4
2
1.0625
2.5
1.25
6.5
1.25
7
1/2” NPT
120 LBS
HTC-4378
12TONS
78”
34.75”
5
2
1.0625
2.25
1.5
7.5
1.5
7
1/2” NPT
129 LBS
HTC-4390
12TONS
90”
38.75”
5
2
1.0625
2.25
1.5
7.5
1.5
7
1/2” NPT
129 LBS
HTC-43108
12TONS
108”
44.75”
5
2
1.0625
2.25
1.5
7.5
1.5
7
1/2” NPT
156 LBS
HTC-43120
12TONS
120”
48.75”
5
2
1.0625
2.25
1.5
7.5
1.5
7
1/2” NPT
167 LBS
