Snow Plow Cylinders
2500 PSI SINGLE ACTING CYLINDERS
FEATURES:
Ductile iron piston.
Ductile iron gland, drilled oil passages.
Honed steel tube, precision finished for extended seal life.
High tensile, hard chrome plated rod.
Tube Seal: V-packing
All Seals: Manufactured to US specifications.
|

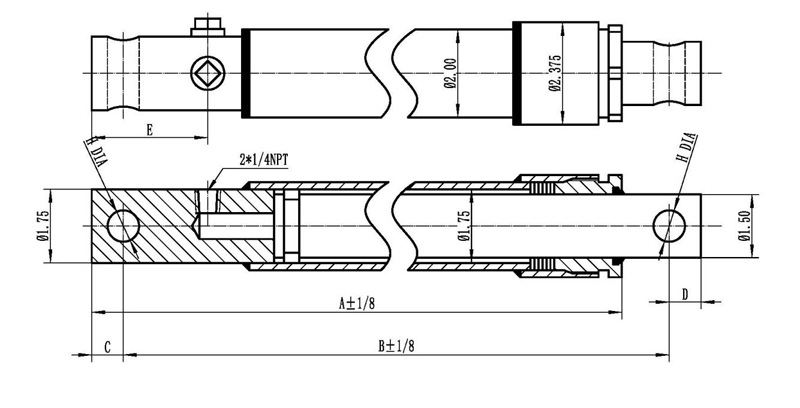

PART NUMBER |
DESCRIPTION |
A |
B |
C & D |
E |
H |
Wt LBS. |
|
SPM-1506-0625 |
MYER 1.5" X 6" |
11-7/8 |
12 |
11/16 |
2 |
5/8 |
12 |
|
SPM-1510-0625 |
MYER 1.5" X 10" |
15-7/8 |
16-1/4 |
11/16 |
2 |
5/8 |
14 |
|
SPM-1512-0625 |
MYER 1.5" X 12" |
17-7/8 |
18 |
11/16 |
2 |
5/8 |
15 |
|
SPW-1506-0750 |
WESTERN 1.5" X 6" |
12-5/8 |
13 |
11/16 |
2-3/4 |
3/4 |
12 |
|
SPW-1508-0750 |
WESTERN 1.5" X 8" |
14-5/8 |
15-1/4 |
11/16 |
2-3/4 |
3/4 |
13 |
|
SPW-1510-0750 |
WESTERN 1.5" X 10" X 3/4" |
16-5/8 |
17-1/4 |
11/16 |
2-3/4 |
3/4 |
14 |
|
SPW-1510-1000 |
WESTERN 1.5" X 10" X 1" |
16-5/8 |
17-1/2 |
11/16 |
2-3/4 |
1 |
14 |
|
SPA-1510-0750 |
ARCTIC 1.5" X 10" |
16-5/8 |
17 |
3/4 |
2-3/4 |
3/4 |
14 |
|
SPA-1512-0750 |
ARCTIC 1.5" X 12" |
18-5/8 |
19 |
3/4 |
2-3/4 |
3/4 |
15 |
|
SPF-1512-1000 |
FISHER 1.5" X 12" |
18-7/16 |
19-3/8 |
3/4 |
2-5/8 |
1 |
15 |
|
SPF-1510-1000 |
FISHER & DIAMOND 1.5" X 10" |
16-3/8 |
17-1/4 |
3/4 |
2-11/16 |
1 |
14 |
|

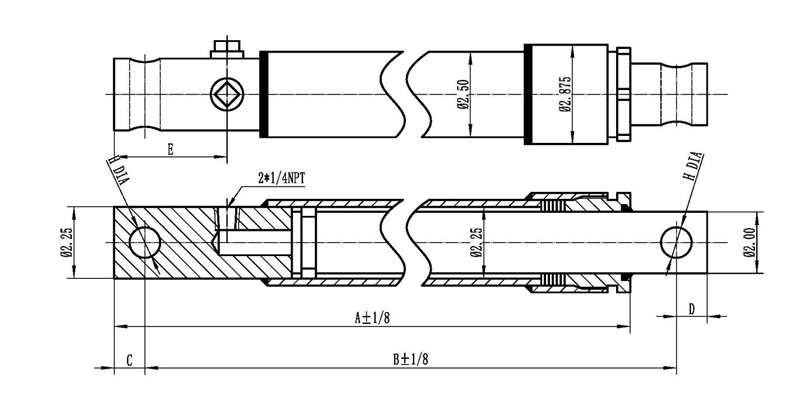

PART NUMBER |
DESCRIPTION |
A |
B |
C & D |
E |
H |
Wt LBS. |
|
SPM-2012-0625 |
MYER 2.0" X 12" |
17-1/4 |
18 |
3/4 |
2-3/16 |
5/8 |
18 |
|
SPW-2016-1000 |
WESTERN & DIAMOND 2.0" X 16" |
22-5/8 |
23-5/8 |
11//16 |
2-3/4 |
1 |
21 |
|
SPW-2006-0750 |
WESTERN 2.0" X 6" |
12-5/8 |
13-3/16 |
3/4 |
2-3/4 |
3/4 |
13 |
|
SPW-2010-1000 |
WESTERN 2.0" X 10" |
16-5/8 |
17-1/4 |
11/16 |
2-3/4 |
1 |
16 |
|
SPF-2016-125 |
FISHER 2.0" X16" |
22-1/2 |
23-1/4 |
7/8 |
2-3/4 |
1-1/4 |
20 |
