Welded Cross Tube Hydraulic Cylinders
For Mobile Applications
Medium to Heavy duty welded construction
Polished rod hard chrome plated thickness 0.001” , surface induction hardened
Precision honed steel tube
Ductile cast iron piston & gland
Threaded gland
Pin eye mounting on both ends
NPT ports for standard cylinder line, O-ring boss(SAE) port available upon request
Loaded u-seal & urethane wiper in gland
O-ring/backup washers & u-seals for piston seals
3000PSI double acting, 2500PSI for 5” bore cylinders
|

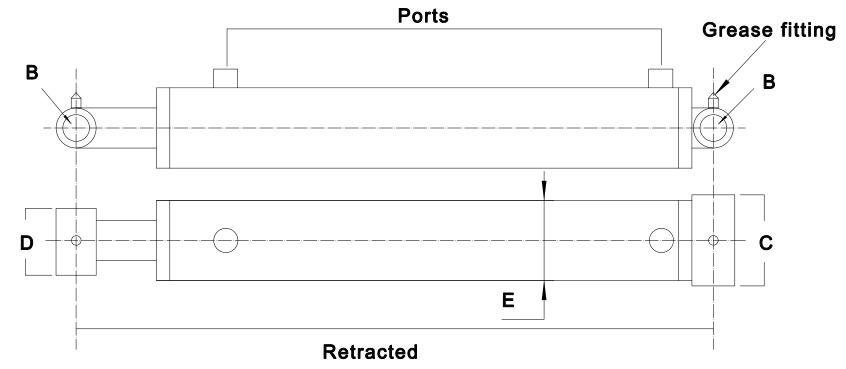

Dimensions in inches(mm) |
|||||
|
Bore Size |
B |
C |
D |
E |
Ports(NPT) |
|
1.50 |
0.77 |
2.25 |
2.00 |
2.0 |
1/4 |
|
(38.10) |
(19.56) |
(57.15) |
(50.80) |
(50.8) |
|
|
2.00 |
1.02 |
2.75 |
2.25 |
2.5 |
3/8 |
|
(50.80) |
(25.91) |
(69.85) |
(57.15) |
(63.5) |
|
|
2.50 |
1.02 |
3.25 |
2.25 |
3.0 |
1/2 |
|
(63.50) |
(25.91) |
(82.55) |
(57.15) |
(76.2) |
|
|
3.00 |
1.02 |
3.75 |
2.25 |
3.5 |
1/2 |
|
(76.20) |
(25.91) |
(95.25) |
(57.15) |
(88.9) |
|
|
3.50 |
1.27 |
4.25 |
2.25 |
4.0 |
1/2 |
|
(88.90) |
(32.26) |
(107.95) |
(57.15) |
(101.6) |
|
|
4.00 |
1.52 |
4.75 |
2.50 |
4.5 |
1/2 |
|
(101.60) |
(38.61) |
(120.65) |
(63.50) |
(114.3) |
|
|
5.00 |
1.77 |
5.75 |
3.25 |
5.5 |
1/2 |
|
(127.00) |
(44.96) |
(146.05) |
(82.55) |
(139.7) |
|
|
|
Part No |
Weight kgs |
Rod Dia. |
Bore Size |
Port Type |
PIN Centers Retracted inch |
PIN Centers Extended inch |
Stroke inch |
|
1 |
WCT-1504 |
4.1 |
1" |
1.5 |
1/4NPT |
12.00 |
16.00 |
4 |
|
2 |
WCT-1506 |
4.6 |
14.00 |
20.00 |
6 |
|||
|
3 |
WCT-1508 |
5.2 |
16.00 |
24.00 |
8 |
|||
|
4 |
WCT-1510 |
5.8 |
18.00 |
28.00 |
10 |
|||
|
5 |
WCT-2008 |
6.1 |
1-1/4" |
2.0 |
3/8NPT |
16.00 |
24.00 |
8 |
|
6 |
WCT-2010 |
6.9 |
18.00 |
28.00 |
10 |
|||
|
7 |
WCT-2012 |
7.7 |
20.00 |
32.00 |
12 |
|||
|
8 |
WCT-2014 |
8.5 |
22.00 |
36.00 |
14 |
|||
|
9 |
WCT-2016 |
9.3 |
24.00 |
40.00 |
16 |
|||
|
10 |
WCT-2018 |
10.1 |
26.00 |
44.00 |
18 |
|||
|
11 |
WCT-2020 |
10.9 |
28.00 |
48.00 |
20 |
|||
|
12 |
WCT-2024 |
12.5 |
32.00 |
56.00 |
24 |
|||
|
13 |
WCT-2028 |
14.1 |
36.00 |
64.00 |
28 |
|||
|
14 |
WCT-2030 |
14.9 |
38.00 |
68.00 |
30 |
|||
|
15 |
WCT-2032 |
15.8 |
40.00 |
72.00 |
32 |
|||
|
16 |
WCT-2036 |
17.4 |
44.00 |
80.00 |
36 |
|||
|
17 |
WCT-2040 |
19.0 |
48.00 |
88.00 |
40 |
|||
|
18 |
WCT-2048 |
22.2 |
56.00 |
104.00 |
48 |
|||
|
19 |
WCT-2508 |
9.0 |
1-1/2" |
2.5 |
1/2NPT |
16.00 |
24.00 |
8 |
|
20 |
WCT-2510 |
9.9 |
18.00 |
28.00 |
10 |
|||
|
21 |
WCT-2512 |
10.9 |
20.00 |
32.00 |
12 |
|||
|
22 |
WCT-2514 |
11.9 |
22.00 |
36.00 |
14 |
|||
|
23 |
WCT-2516 |
12.9 |
24.00 |
40.00 |
16 |
|||
|
24 |
WCT-2518 |
13.9 |
26.00 |
44.00 |
18 |
|||
|
25 |
WCT-2520 |
14.9 |
28.00 |
48.00 |
20 |
|||
|
26 |
WCT-2524 |
16.9 |
32.00 |
56.00 |
24 |
|||
|
27 |
WCT-2528 |
18.8 |
36.00 |
64.00 |
28 |
|||
|
28 |
WCT-2530 |
19.8 |
38.00 |
68.00 |
30 |
|||
|
29 |
WCT-2532 |
20.8 |
40.00 |
72.00 |
32 |
|||
|
30 |
WCT-2536 |
22.8 |
44.00 |
80.00 |
36 |
|||
|
31 |
WCT-2540 |
24.8 |
48.00 |
88.00 |
40 |
|||
|
32 |
WCT-2548 |
28.7 |
56.00 |
104.00 |
48 |
|||
|
33 |
WCT-3008 |
11.2 |
1-1/2" |
3.0 |
1/2NPT |
16.00 |
24.00 |
8 |
|
34 |
WCT-3010 |
12.3 |
18.00 |
28.00 |
10 |
|||
|
35 |
WCT-3012 |
13.4 |
20.00 |
32.00 |
12 |
|||
|
36 |
WCT-3014 |
14.5 |
22.00 |
36.00 |
14 |
|||
|
37 |
WCT-3016 |
15.6 |
24.00 |
40.00 |
16 |
|||
|
38 |
WCT-3018 |
16.7 |
26.00 |
44.00 |
18 |
|||
|
39 |
WCT-3020 |
17.8 |
28.00 |
48.00 |
20 |
|||
|
40 |
WCT-3024 |
20.0 |
32.00 |
56.00 |
24 |
|||
|
41 |
WCT-3028 |
22.2 |
36.00 |
64.00 |
28 |
|||
|
42 |
WCT-3030 |
23.3 |
38.00 |
68.00 |
30 |
|||
|
43 |
WCT-3032 |
24.3 |
40.00 |
72.00 |
32 |
|||
|
44 |
WCT-3036 |
26.5 |
44.00 |
80.00 |
36 |
|||
|
45 |
WCT-3040 |
28.7 |
48.00 |
88.00 |
40 |
|||
|
46 |
WCT-3048 |
33.1 |
56.00 |
104.00 |
48 |
|||
|
47 |
WCT-3508 |
14.8 |
1-3/4" |
3.5 |
1/2NPT |
18.00 |
26.00 |
8 |
|
48 |
WCT-3510 |
16.2 |
20.00 |
30.00 |
10 |
|||
|
49 |
WCT-3512 |
17.6 |
22.00 |
34.00 |
12 |
|||
|
50 |
WCT-3514 |
18.9 |
24.00 |
38.00 |
14 |
|||
|
51 |
WCT-3516 |
20.3 |
26.00 |
42.00 |
16 |
|||
|
52 |
WCT-3518 |
21.6 |
28.00 |
46.00 |
18 |
|||
|
53 |
WCT-3520 |
23.0 |
30.00 |
50.00 |
20 |
|||
|
54 |
WCT-3524 |
25.7 |
34.00 |
58.00 |
24 |
|||
|
55 |
WCT-3528 |
28.4 |
38.00 |
66.00 |
28 |
|||
|
56 |
WCT-3530 |
29.8 |
40.00 |
70.00 |
30 |
|||
|
57 |
WCT-3532 |
31.2 |
42.00 |
74.00 |
32 |
|||
|
58 |
WCT-3536 |
33.9 |
46.00 |
82.00 |
36 |
|||
|
59 |
WCT-3540 |
36.6 |
50.00 |
90.00 |
40 |
|||
|
60 |
WCT-3548 |
42.0 |
58.00 |
106.00 |
48 |
|||
|
61 |
WCT-4008 |
18.5 |
2" |
4.0 |
1/2NPT |
18.00 |
26.00 |
8 |
|
62 |
WCT-4010 |
20.2 |
20.00 |
30.00 |
10 |
|||
|
63 |
WCT-4012 |
21.9 |
22.00 |
34.00 |
12 |
|||
|
64 |
WCT-4014 |
23.5 |
24.00 |
38.00 |
14 |
|||
|
65 |
WCT-4016 |
25.2 |
26.00 |
42.00 |
16 |
|||
|
66 |
WCT-4018 |
26.8 |
28.00 |
46.00 |
18 |
|||
|
67 |
WCT-4020 |
28.5 |
30.00 |
50.00 |
20 |
|||
|
68 |
WCT-4024 |
31.8 |
34.00 |
58.00 |
24 |
|||
|
69 |
WCT-4028 |
35.1 |
38.00 |
66.00 |
28 |
|||
|
70 |
WCT-4030 |
36.8 |
40.00 |
70.00 |
30 |
|||
|
71 |
WCT-4032 |
38.4 |
42.00 |
74.00 |
32 |
|||
|
72 |
WCT-4036 |
41.7 |
46.00 |
82.00 |
36 |
|||
|
73 |
WCT-4040 |
45.0 |
50.00 |
90.00 |
40 |
|||
|
74 |
WCT-4048 |
51.7 |
58.00 |
106.00 |
48 |
|||
|
75 |
WCT-5008 |
32.6 |
2-1/2" |
5.0 |
1/2NPT |
20.00 |
28.00 |
8 |
|
76 |
WCT-5010 |
34.5 |
22.00 |
32.00 |
10 |
|||
|
77 |
WCT-5012 |
36.5 |
24.00 |
36.00 |
12 |
|||
|
78 |
WCT-5014 |
38.4 |
26.00 |
40.00 |
14 |
|||
|
79 |
WCT-5016 |
40.4 |
28.00 |
44.00 |
16 |
|||
|
80 |
WCT-5018 |
42.4 |
30.00 |
48.00 |
18 |
|||
|
81 |
WCT-5020 |
44.3 |
32.00 |
52.00 |
20 |
|||
|
82 |
WCT-5024 |
48.2 |
36.00 |
60.00 |
24 |
|||
|
83 |
WCT-5028 |
52.2 |
40.00 |
68.00 |
28 |
|||
|
84 |
WCT-5030 |
54.1 |
42.00 |
72.00 |
30 |
|||
|
85 |
WCT-5032 |
56.1 |
44.00 |
76.00 |
32 |
|||
|
86 |
WCT-5036 |
60.0 |
48.00 |
84.00 |
36 |
|||
|
87 |
WCT-5040 |
63.9 |
52.00 |
92.00 |
40 |
|||
|
88 |
WCT-5048 |
71.7 |
60.00 |
108.00 |
48 |
